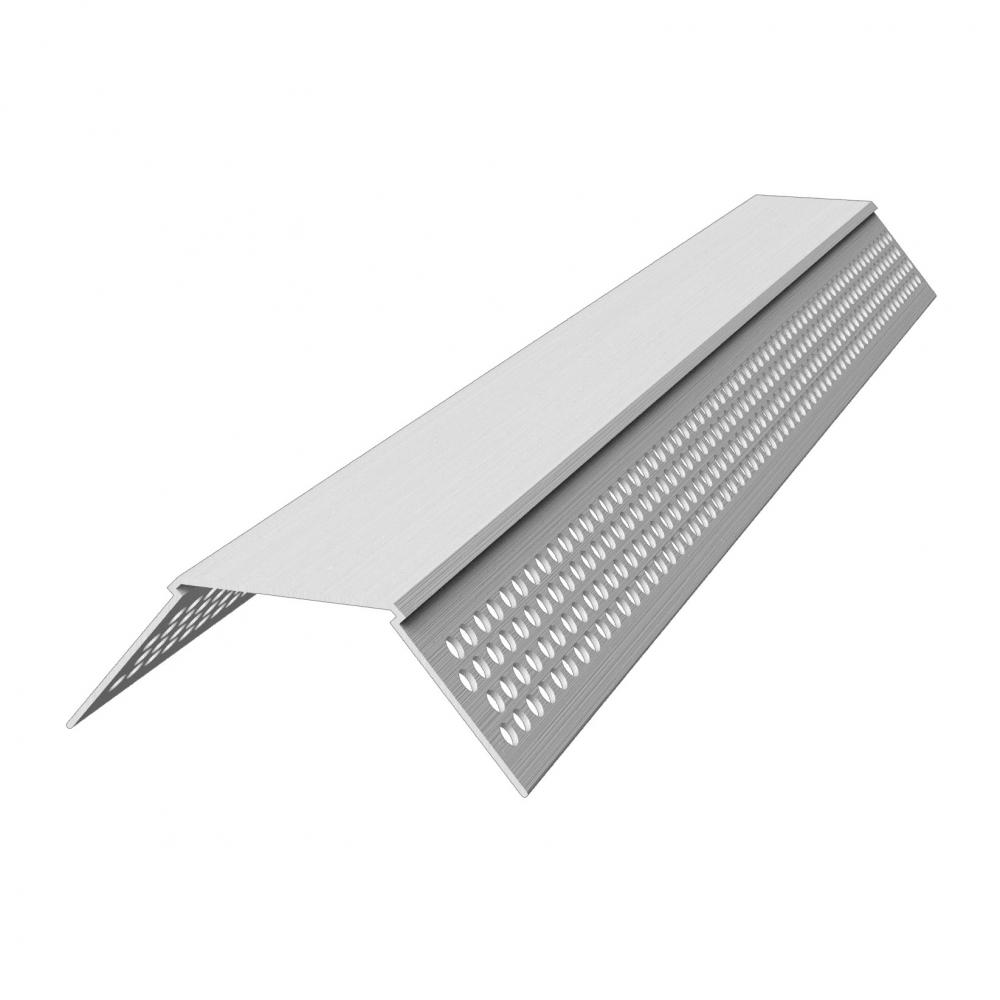

Chamfered edge for a modern look
Designed with a 3/4" chamfered edge at the corner to provide a modern look and shadowing effect.
Application(s): Drywall
Designed with a 3/4" chamfered edge at the corner to provide a modern look and shadowing effect.
Product Data & Ordering Information
| Product code | Chamfered Edge | Flanges | Length | Pcs./Ctn. |
|---|---|---|---|---|
| CH125-8 | 3/4" | 1" | 8' | 30 |
| CH125-9 | 3/4" | 1" | 9' | 30 |
| CH125-10 | 3/4" | 1" | 10' | 30 |
Note: Chamfered Archway available with slotted flange in 10' lengths.
Documents
Code Approvals & Performance Standards
- ASTM C840 Standard Specification for Application and Finishing of Gypsum Board
- ASTM C1047 Standard Specification for Accessories for Gypsum Wallboard and Gypsum Veneer Base
- ASTM D1784 Standard Classification System and Basis for Specification for Rigid Poly(Vinyl Chloride) (PVC) Compounds and Chlorinated Poly(Vinyl Chloride) (CPVC) Compounds
- ASTM D3678 Standard Specification for Rigid Poly(Vinyl Chloride) (PVC) Interior - Profile Extrusions
- SDS Vinyl Corp PVC Compounds
Storage:
All stored materials shall be kept dry. Materials shall be stacked off the ground, supported on a level platform, and protected from the weather.
Product Submittal Sheets
Click the below Product Code to view Submittal/Tech Datasheet.
| Product Code | Description |
|---|---|
| CH125 | Chamfered Corner Bead |
ClarkDietrich SubmittalPro®
Submittal sheets for the exact product you're looking for can be created by using ClarkDietrich's SubmittalPro® Product Submittal System.
- Contact ClarkDietrich Technical Services at 888-437-3244 for any questions about creating product submittals or using SubmittalPro.
